Brand Name : Dorhaus, DORRENHAUS
Model Number : D404
Certification : ISO9001:2015
Place of Origin : Zhejiang, China
MOQ : 200 pcs
Price : USD5.00-USD35.00 per piece
Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability : 20,000 pcs / month
Delivery Time : around 35 days
Packaging Details : 1pc in 1 paper box, 10pcs in carton of 480*302*185mm, 30ctns in 1 wooden pallet.
Kernal Keyword : Residential Door Closer
Spring Force : #4
Regular Arm, Top Jamb : 2 years
Open Angle Limit : 115degree
Weight Range : 60-85kg
Optional : Hold Open
Temperature Range : - 40℃ to 45℃
Width Limit : 1100mm
Medium Duty Residential Door Closer Size 4 For 60 - 85kg Outside Door
Dorrenhaus - CE- and UL-certified | Exporting since 2011
Dorhaus model D404 door closer is of surface mounted type, designing for
medium duty application, suitable for outside door max. weighing 85kg or width

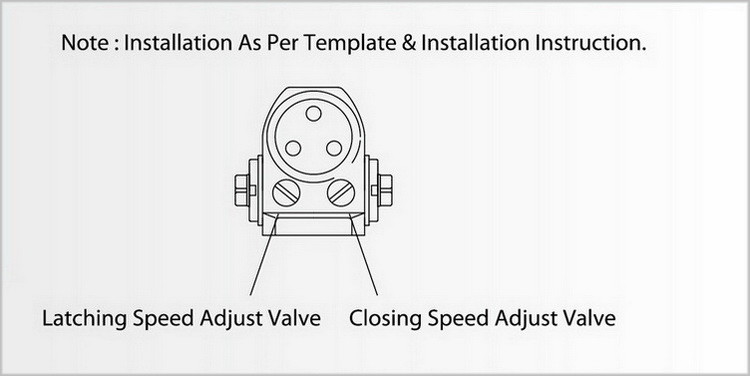

1100mm. The closing and latching speed was controlled by dual adjusting
valves separately.
Ω Surface Mounted Door Closer Medium Duty Residential Model
Ω Precised Aluminum Alloy Closer Body and Reinforced Steel Arm
Ω Closing & Latching Speed Adjustable by Independent Valves
Ω Regular Arm & Top Jamb Mounted, Non-handed Installation
Ω Closing force size 4 for 60-85kg door max. width: 1100mm
Ω Selling Point of Product: Cost-effective, Medium Duty
Ω Suitable for Medium Traffic such as School Corridor Door
Ω Hold Open Function Inside Closer Body is for Optional
► Long-term cooperative manufacturer of world's famous door control trade mark
Finishes - Silver, Bronze, Black, Brown, White, Gold
* SPRING FORWARD, EASY BACK: reinforced steel swing arm will not impact opening,
meanwhile shut doors gradually to allow for graceful extry and exit
* CONSUMMATE CRAFTSMANSHIP: smooth operation, oil tight, no abnormal sound
* GENTLE, NO NEED TO CLOSE MANUALLY: let the door do the work, enjoy automatic
shutdown and lock, maintaining quiet and safety.
Closing Power | Max. Door Open Angle | Fireproof Standard | Life Cycles Factory Tested |
Warranty
|
size 4
| 115º | / | 200,000 | 2 years |
Model
| Width Limit | Weight Suitable | Body Spec. (LxWxH) | Installation Dimension |
D404
| 1100mm | 60-85kg | 184*41.5*66.5mm | 168*24mm |
![]() |
Medium Duty Residential Door Closer Size 4 For 60 - 85kg Outside Wooden Door Images |
